iFlex Swing Gate Long

iFlex Swing Gate Long

Long Swing Gates provide access openings for pedestrians and light vehicles at certain points within barrier sections. They act as a physical stop to prevent a pedestrian or driver travelling straight through a gap or crossing point. They are non-return to ensure the opening remains in place while in use for safe vehicle movement.

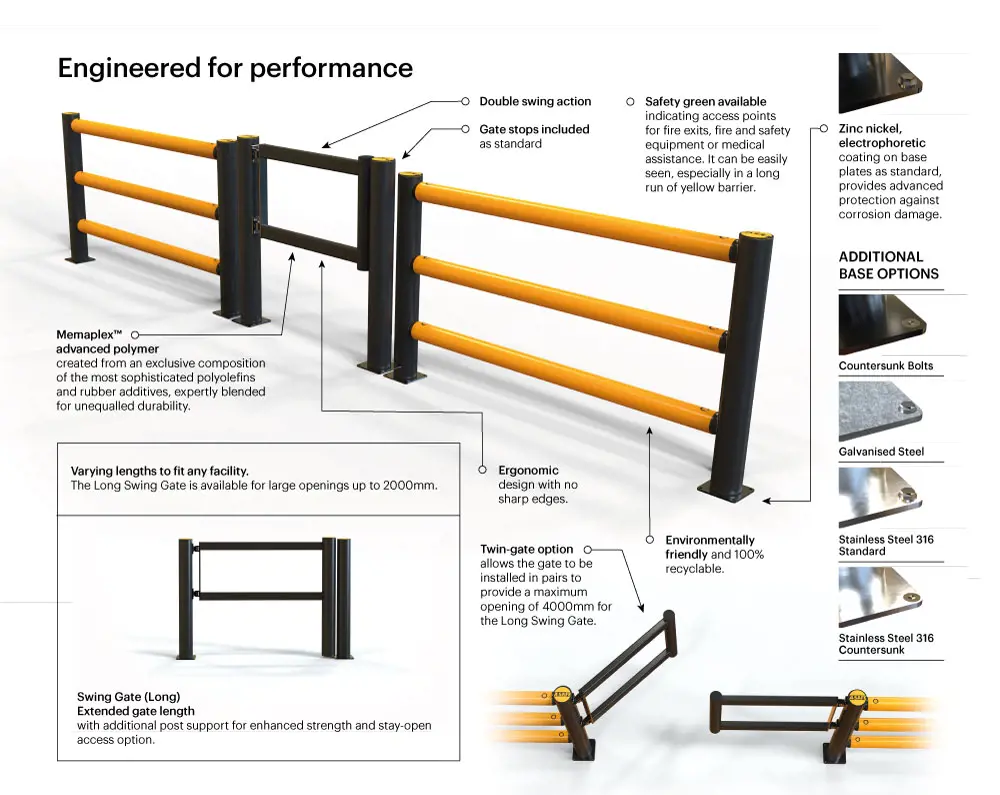

The gates have a double swing action but are also supplied with gate stops which can be easily integrated to limit movement to one direction and force users to pause and pull the gate towards them to enhance safety. Compatible with all pedestrian barriers and combined pedestrian and traffic barriers, they can be installed on their own or in pairs to increase the size of the opening.



  • Suitable for:

  • Product features

    • Stay-Open Access
    • Double Swing Action
    • Gate Stops Included as Standard
    • Electrophoretic Coated Base
    • Additional Base Options
  • Technical specification

    iFlex Swing Gate Long is available in various widths from 1300mm to 2000mm, increasing in 100mm increments. For smaller openings, Short Swing Gates are available. They can be installed on their own or in pairs to provide a maximum opening of 4000mm for the Long Swing Gate and 2400mm for the Short Swing Gate.  Swing Gates are available in black or green.  The safety green gates indicate access points for fire exits, fire or safety equipment or for medical assistance.  The green can be easily seen especially in a long run of yellow barriers.

  • Installation video

  • Technical information and installation manual download

  • Safety certifications

    PAS 13: Code of Practice for Safety Barriers

    What is PAS 13? It is the worldwide standard for testing and installing safety barriers in the workplace.

    PAS stands for Publicly Available Specification and is an official document produced by the British Standards Institution (BSI). PAS provides independent detailed guidance on best practice in the use of a product or process.

  • Case studies

A-SAFE is a world leader in the production of safety barriers

Contact us and we will help you ensure safe operation, safe performance of work, protection of equipment, safety of employees and your property.
